A Power Plant Operates on the Following Simple Rankine Cycle

Assumptions 1 Steady operating conditions exist. The moisture content of the steam at the turbine exit is not to exceed 10 percent.

A Steam Power Plant Operates On The Cycle Shown In The Following Figure Youtube

Assume steady-state steady-flow conditions 2 T2-17991C P-1 MPa h2-27781 kJkg P- 1 MPa 73-500C P-500 stk SUPERHEATER - 13 h-34785 kJkg.

. Power plant operates on the following simple Rankine cycle. A simple Rankine cycle produces 40 MW of power 50 MW of process heat and rejects 60 MW of heat to the surroundings. Assume steady-state steady-flow conditions.

In this case the turbine operates at steady state with inlet conditions of 6 MPa t 2756C x 1. 2 Kinetic and potential energy changes are negligible. The Rankine cycle is the basis of all large steam power plants as briefly discussed in Chapter 6 refer to Figure 616In coal-fired power plants high-temperature high-pressure steam is produced by converting the chemical energy stored in the coal into thermal energy and transferring the energy to the.

Water is pumped from low pressure to high pressure. Application of the first law to the entire cycle gives Qin Qp Qreject W 150 MW. A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 4 MPa and 100 kPa.

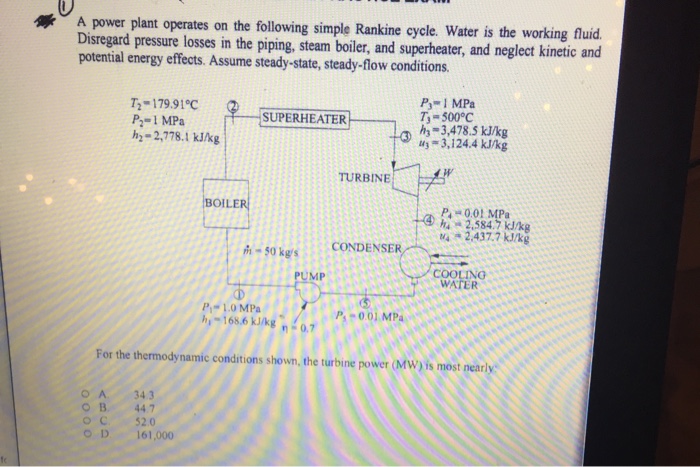

Water is the working fluid. Water is the working fluid. A power plant operates on the following simple Rankine cycle.

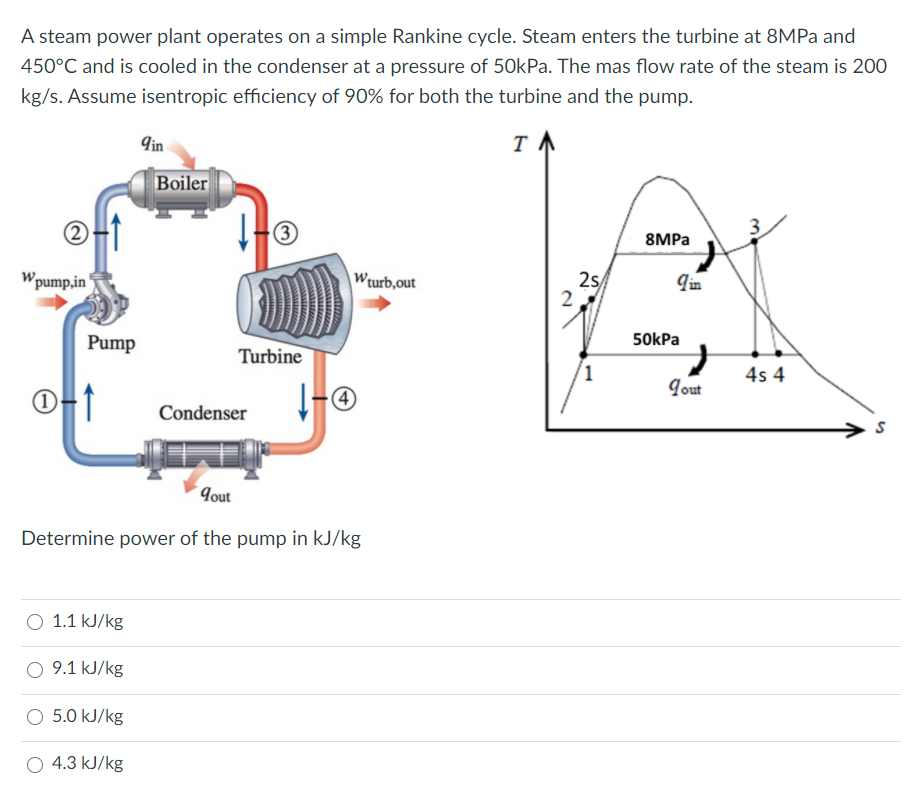

Disregard pressure losses in the piping steam boiler and superheater and neglect kinetic and potential energy effects. Consider a steam power plant that operates on a simple Rankine cycle that has a net power output of 30 MW. The mass flow rate of steam through the cycle is 75 mathrmlbm mathrms.

The utilization factor is then Qp W. A steam power plant operates on a simple ideal Rankine cycle between the pressure limits of 1250 and 2 psia. In this case the turbine operates at a steady state with inlet conditions of 6 MPa t 2756C x 1 point 3.

Steam is cooled in the condenser by the cooling water from a nearby river which enters the condenser at. Disregard pressure losses in the piping steam boiler and superheater and neglect kinetic and potential energy effects. The condenser uses cooling water from a lake that runs through the tubes of the condenser at a rate of 2000 kgs.

Steam enters the turbine of a steam power plant that operates on a simple ideal Rankine cycle at a pressure of 6 MPa and it leaves as a saturated vapor at 75 kPa. In this case assume a simple cycle without reheat and without with condensing steam turbine running on saturated steam dry steam. A 200 MW steam power plant operates on a simple Rankine cycle with superheated steam entering the turbine and exhausts to a condenser at 46C.

A 50 b 60 c 70 d 80 Explanation. For the thermodynamic conditions shown the turbine power MW is most nearly. Some steam is extracted at 09 MPa to heat the feedwater in an open feedwater heater.

The ideal cycle for vapor power plants is the Rankine cycle. Water leaves the feedwater heater as a saturated liquid. If the isentropic efficiency of the turbine is 87 percent and the isentropic efficiency of the pump is 85 percent determine a the thermal efficiency of the cycle and b the net power output of the plant for a mass flow rate of.

9-1-35 reheatGen-100MW A power plant operates on an ideal reheat-regenerative Rankine cycle and has a net power output of 100 MW. Steam is extracted from the turbine at 04 MPa to heat the feedwater in an open feedwater heater. Let assume the Rankine cycle which is the one of most common thermodynamic cycles in thermal power plants.

Assume steady-state steady-flow conditions. Load-following plants are typically in between base load and peaking power plants in efficiency speed of start-up and shut-down construction cost cost of electricity and capacity factor. In this case assume a simple cycle without reheat and condensing steam turbine running on saturated steam dry steam.

If the superheated steam pressure is 12 MPa and and has an enthalphy of 32098 kJkg For the ideal Cycle find the following. What is the utilization factor of this co generation cycle neglecting the pump work. Miller in Clean Coal Engineering Technology 2011 711 Rankine Cycle.

B-the net power output of the power plant. Steam enters the turbine at 6 MPa and 450oC and is condensed in the condenser at 20 kPa. A simple ideal Rankine cycle with water as the working fuid operates between the pressure limits of 3 MPa in the boiler and 30 kPa in the condenser If the quality at the exit of the turbine cannot be less than 79 percent what is the maximum thermal efficiency this cycle can have.

A steam power plant operates on the Rankine cycle in which the steam enters the turbine at 16 MPa and 600C and the condensate leaves the condenser at 10 kPa. This cycle needs heat input for the boiler either by burning fossil fuels such as oil coal and natural gas or by obtaining the necessary heat from. Steam enters the high pressure turbine stage at 12 MPa 550 o C and leaves at 09 MPa.

The steam power plant shown below operates on the Rankine CycleSteam leaves the boiler at 35 MPa and 400CThe turbine exhausts to the condenser at 10 kPaThe turbine has an isentropic efficiency of 88 and the pump operates essentially isentropically. The thermal efficiency of the cycle the mass flow rate of the steam and the temperature rise of the cooling water are to be determined. Let us assume the Rankine cycle one of the most common thermodynamic cycles in thermal power plants.

Turbine Win 1 Pump 2 Qout Q Condenser Boiler in 3 Wout 4 Generator 300 MW 096 P 5 MPa T 450C P 25 kPa P 25 kPa s s Coal HV 29300 kJkg 075 Ideal Rankine Cycle comb gen P 5 MPa s s 2 21 1 4 43 3 3. By The Science Pan. A-the thermal efficiency of the cycle.

A load-following power plant regarded as producing mid-merit or mid-priced electricity is a power plant that adjusts its power output as demand for electricity fluctuates throughout the day. The temperature of the steam at the turbine inlet is 4000C and the mass flow rate of steam through the cycle is 50 kgs. Steam Rankine cycle is known as one of the main power-generating cycles which consists of four key devices namely a boiler heat exchanger a steam turbine a condenser heat exchanger and a pump as illustrated in Fig.

A steam power plant operates on a simple ideal Rankine cycle between the specified pressure limits. Water is the working fluid Disregard pressure losses in the piping steam boiler and superheater and neglect kinetic and potential energy effects. An ideal Rankine Cycle it is common to assume that the liquid at location 1 is saturated.

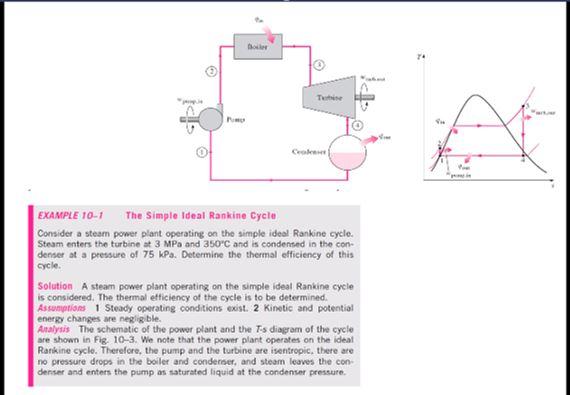

The simple ideal Rankine cycle does not involve any internal irreversibilities and consists of the following four processes. Steam enters the turbine at 7MPa and 500 ⁰C and is cooled to a saturated liquid in the condenser at a pressure of 10 kPa. A steam power plant operates on an ideal regenerative Rankine cycle.

1-2 Isentropic compression in a pump. The Simple Ideal Rankine Cycle. Heat is transferred to the steam in the boiler at a rate of 40000 ks.

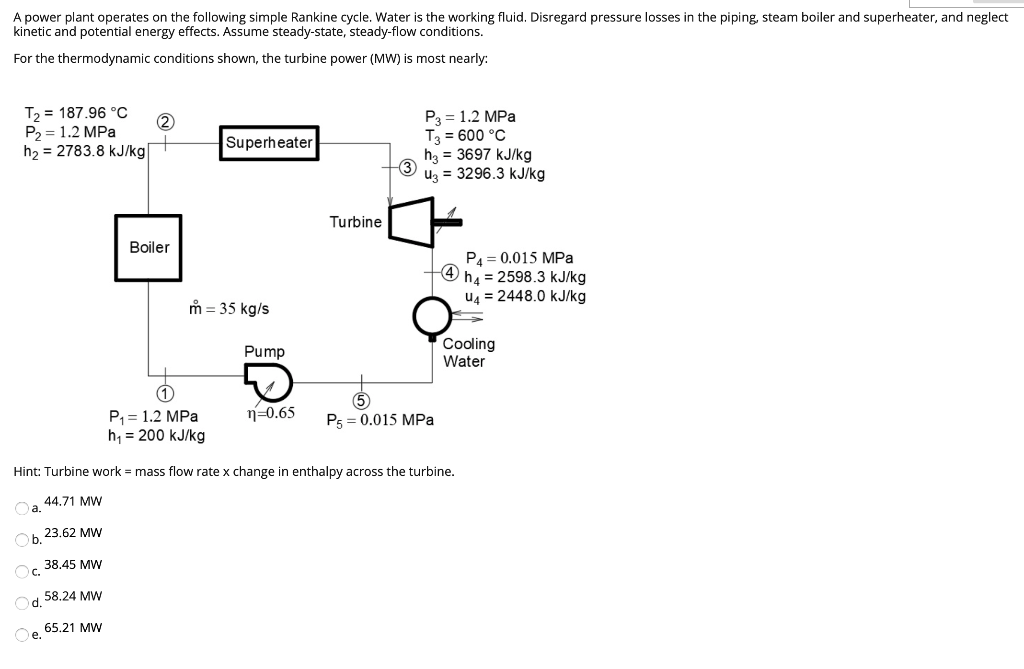

A power plant operates on the following simple Rankine cycle.

A Steam Power Plant Operates On The Simple Ideal Rankine Cycle Steam Enters The Turbine At 4 Mpa 500c And Is Condensed In The Condenser At A Temperature Of 40c A Show
